SUS A128

Made of precious metal--stainless steel Grade304, with thermally insulated design,and with a screen sash to prevent insects and debris while keeping ventilation, suitable for coastal areas, residential houses etc.

Parameter

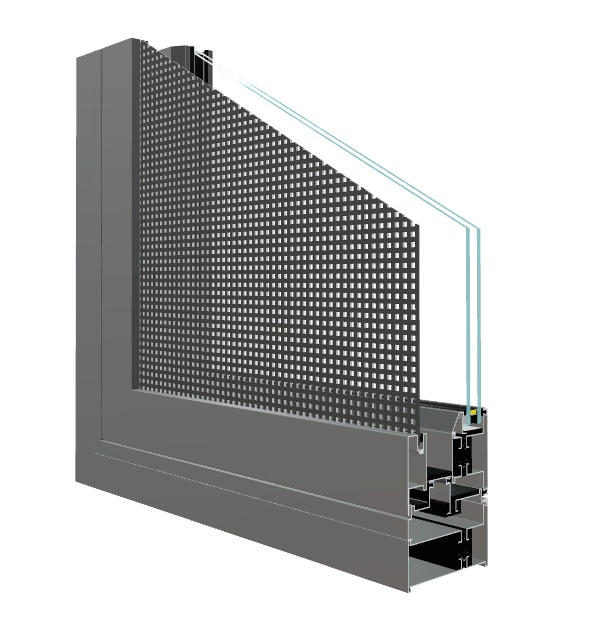

Profile Material: stainless steel Grade304

Wall Thickness:0.93mm

Profile Depth: 128mm

Profile Surface Finish: polished,satin finished

Thermal Break: Polyamide 66

Weather-proof Seal, Internal Rebate Gasket and Sealing Gasket: EPDM

Glazing Fitment: double glazing

Model:
SUS A128
Applications:
Turn window, Picture window
Features:
With a screen sash made of stainless steel Grade304(for sash frame) and stainless steel Grade316(for screen)
Steel Systems:
Window

Availability:



Inquire Add to Basket

◆ Rust-proof and acid-proof

◆ Durable and energy-efficient

◆ A screen sash made of stainless steel Grade304(for sash frame) and stainless steel Grade316(for screen) can offer functions of insect prevention while keeping ventilation, debris blockage and privacy

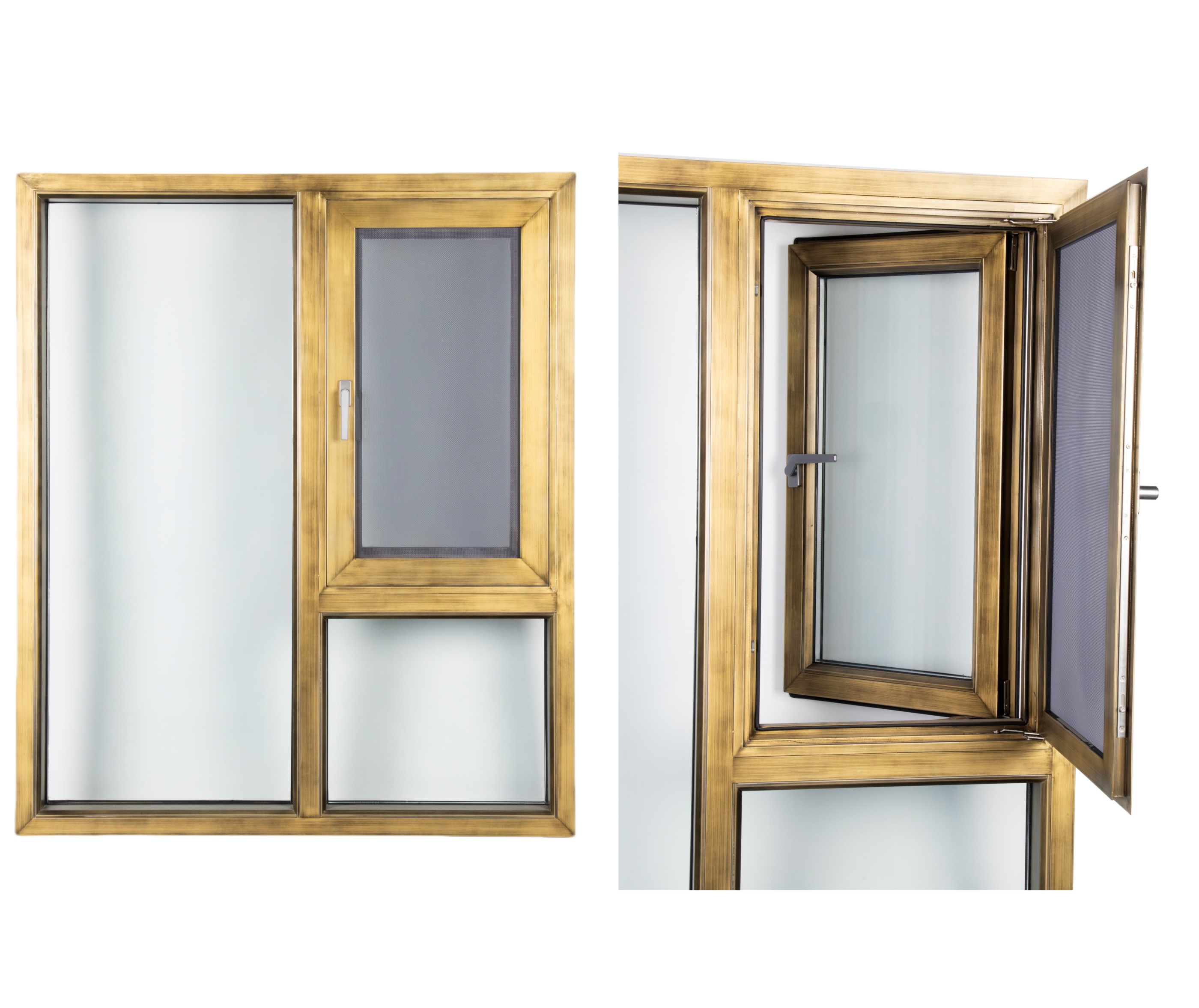

◆ Suitable for Picture window and Turn window

SUS A128

Related Products

Slim A70

SUS C10

SUS A60

ArtA B7350

ArtA B1048

ArtC B6050

P60

P50

Resistance to wind load:	5.0kPa （GB/T 7106-2019)
Air permeability:	class 8 (GB/T 7106-2019)
Water tightness:	700Pa (GB/T 7106-2019)
Thermal transmission:	Kw=1.9W/（m2·k）（GB/T8484-2020）
Sound Insulation:	exterior window, RW≥33dB (GB/T8485-2008) interior window,RW≥33dB (GB/T8485-2008)

Resistance to wind load:	5.0kPa （GB/T 7106-2019)
Air permeability:	class 8 (GB/T 7106-2019)
Water tightness:	700Pa (GB/T 7106-2019)
Thermal transmission:	Kw=1.9W/（m2·k）（GB/T8484-2020）
Sound Insulation:	exterior window, RW≥33dB (GB/T8485-2008) interior window,RW≥33dB (GB/T8485-2008)
